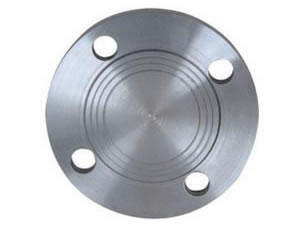

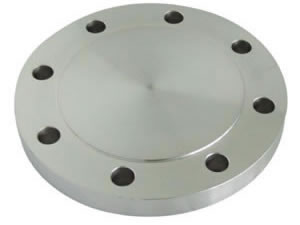

Blind Flange

A blind flange is a popular type of pipe flange. It has no bore in the middle, and is primarily used to close ends of piping systems. This flange permits easy access to a line once it has been sealed. It sometimes can be machined to accept a nominal sized pipe to which a threaded or welded reduction is being made. Ahad blind flanges are available in various sizes and materials for you to choose from.

Size
Blind flange 3/8"~80"
DN10~DN2000

Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500 European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100

Flange Facing Types
American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ)
European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)

Materials
Carbon Steel: ASTM/ASME A105, ASTM/ASME A516 Grade 55-60-65-70
Alloy Steel: ASTM/ASME A182 F1-F12-F11-F22-F5-F9-F91-F911-F92
Stainless Steel: ASTM/ASME A182 F304-F304H-F304L-F304N-F304LN F316-F316H-F316L-F316N-F316LN F321-F321H F347-F347H, ASTM/ASME A182 F51-F52-F53-F54-F55-F60-F61
Low-Temperature Steel: ASTM/ASME A522, ASTM/ASME A707 Grade L1-L2-L3-L4-L5-L6-L7-L8
High-Strength Steel: ASTM/ASME A694 F42-F46-F48-F50-F52-F56-F60-F65-F70

Standards
ASME B16.5-2013, B16.47-2011
MSS SP-44-2010
EN 1092-1-2007, EN 1759-1-2004
ISO 7005-1-1992
AS 2129-2000
GB/T 9112-2010, GB/T 9123-2010
HG/T 20592-2009, HG/T 20615-2009, HG/T 20623-2009
SH/T 3406-2013
GOST- AFNOR- BS- DIN

Industrial Processes
Die forging, Machining

Industries Served
Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy

As a blind flange manufacturer and supplier in China, Ahad provides a great line of pipe fittings, including pipe bends, threaded tees, socket weld caps, welding bosses, industrial flanges and more. They are produced in compliance with ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API standard, and are used by hundreds of customers in Italy, Germany, Spain, France, Russia, USA, Brazil, Iran, India, etc.
