Pipe Cross

  • Straight Crosses
  • Reducing Crosses
  • Reducing Crosses

Pipe Cross

Specifications for Pipe Cross
  Production range
Seamless pipe cross Welding pipe cross
Outside diameter 1/2"-24" DN15-DN600 6"-120" DN150-DN3000
Wall thickness 4mm~200mm
Product type Straight cross, reducing cross

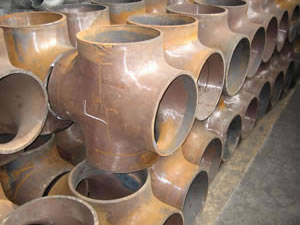

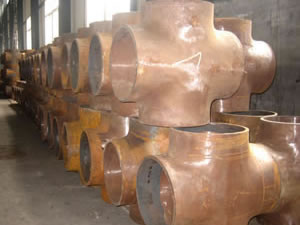

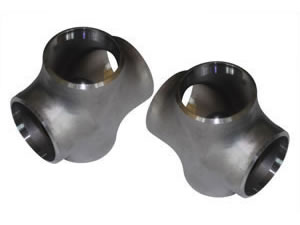

A pipe cross may have one inlet and three outlets, while three inlets and one outlets are also available. Pipe crosses with the same inlet and outlet sizes are straight crosses, and crosses with different inlet and outlet sizes are called reducing crosses. We are a famous pipe cross manufacturer and supplier in China. In order to satisfy various customers requirements, we produce our cross pipes using different materials. At Ahad, we have carbon steel cross, stainless steel cross, alloy steel cross high-strength steel cross (Line pipe cross), low-temperature steel cross, etc. As a result of their tensile strength, corrosion resistance and dimensional accuracy, our products are well received in many countries, like Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, and India.

Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. wall thickness: 200mm

Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Standards
ASME B16.9-2012, ASME B16.25-2012, ASME B36.10M-2004, ASME B36.19M-2004
CSA Z245.11-13-2013
GB/T 12459-2005, GB/T 13401-2005
SY/T 0510-2010

Industrial Processes
Squeezing, pressing, forging, machining and more

Industries Served
Our pipe crosses are widely used in many industries, including electricity, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and more.
