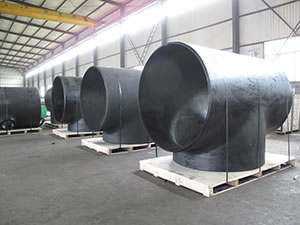

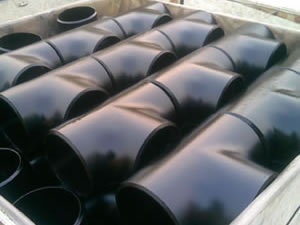

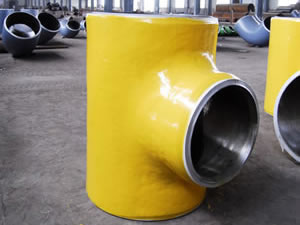

Pipe Tee
-
Reducing Tee -
Straight Tee -
Reducing Tee
Pipe Tee
Specifications for Pipe Tee| Production range | ||
| Seamless pipe tee | Welding pipe tee | |
| Outside diameter | 1/2"-32" DN15-DN800 | 6"-120" DN150-DN3000 |
| Wall thickness | 4mm~200mm | |
| Product type | Straight tee, reducing tee | |
Most straight tees on the market are welded and welding lines are worn away, which is not allowed in the manufacture of pressure pipe components. While Ahad straight tees (OD 1/2"~72") are formed in one process(without weld joint). We have adopted advanced equipment and technologies in the production of our pipe tees, which can improve product quality, shorten processing time and reduce costs.
A pipe tee is a kind of industrial pipe fittings. It is mainly used to either combine or split a fluid flow. Most common tees have the same inlet and outlet sizes, but reducing tees are also available. As a professional pipe tee manufacturer in China, we at Ahad can provide high quality straight tees and reducing tees to worldwide customers. According to the type of raw material, our product can be sorted into carbon steel tee, stainless steel tee, alloy steel tee, high-strength steel tee(Line pipe tee), low-temperature steel tee, and so on. Relying on superior quality and low price, our products are very popular in Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and some other countries.
Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. wall thickness: 200mm
Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Standards
ASME B16.9-2012, ASME B16.25-2012, ASME B36.10M-2004, ASME B36.19M-2004
MSS SP-75-2008, MSS SP-43-2013
EN 10253-1-1999, EN 10253-2-2007, EN 10253-3-2008, EN 10253-4-2008
DIN 2615-1-1992, DIN 2615-2-1992
CSA Z245.11-13-2013
BS 1640-1-1962, BS 1640-2-1962, BS 1640-3-1968, BS 1640-4-1968, BS 1965-1-1963
GOST 17376-2001
AFNOR NF A 49-289-1990, AFNOR NF A 49-170-1-1999, AFNOR NF A 49-170-2-2009, AFNOR NF A 49-170-3-2009, AFNOR NF A 49-170-4-2009
ISO 3419-1981, ISO 5251-1981
GB/T 12459-2005, GB/T 13401-2005, GB/T 10752-2005
SH/T 3408-2012
SY/T 0609-2006, SY/T 0518-2002, SY/T 0510-2010
DL/T 695-2014, DL 473-1992, GD 2000, GD 87-1101
Industrial Processes
Squeezing, pressing, forging, machining and more
Industries Served
Our pipe tees are widely used in a wide range of industries, such as power generation, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and so on.
