Orifice Flange

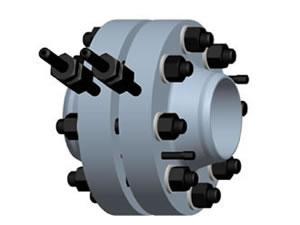

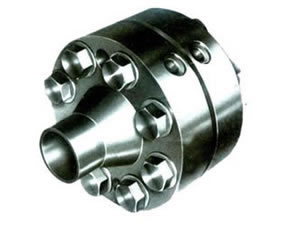

Our orifice flange is used with orifice meters to measure the flow rate of liquid and gas. Two orifice flanges with bolts and jack screws are referred to as an orifice flange union, which is used in conjunction with an orifice plate. Compared with weld neck flange and slip on flange, it is provided radial, tapped holes in the flange ring for meter connections and additional bolts to facilitate separating the flanges for inspection of the orifice plate.

Size
Orifice flange: 1"~24"
DN25~DN600

Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500

Flange Facing Types
American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ)

Materials
Carbon Steel: ASTM/ASME A105, ASTM/ASME A516 Grade 55-60-65-70
Alloy Steel: ASTM/ASME A182 F1-F12-F11-F22-F5-F9-F91-F911-F92
Stainless Steel: ASTM/ASME A182 F304-F304H-F304L-F304N-F304LN F316-F316H-F316L-F316N-F316LN F321-F321H F347-F347H, ASTM/ASME A182 F51-F52-F53-F54-F55-F60-F61
Low-Temperature Steel: ASTM/ASME A522, ASTM/ASME A707 Grade L1-L2-L3-L4-L5-L6-L7-L8
High-Strength Steel: ASTM/ASME A694 F42-F46-F48-F50-F52-F56-F60-F65-F70

Standards
ASME B16.36-2009

Industrial Processes
Die forging, Machining

Industries Served
Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy

As a professional orifice flange manufacturer in China, Ahad produces a wide line of industrial pipe fittings such as butt weld fittings, industrial flange, forged fittings and steel pipes etc. Owing to the reliable quality and high performance, our products are successfully exported to many countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and so forth.
If you are in need of any pipe fittings, we are a preferred supplier for you!
