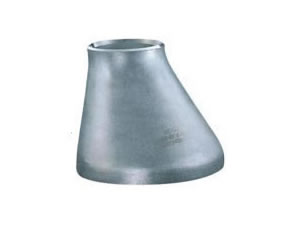

  • Eccentric Reducer
  • Pipe Reducer

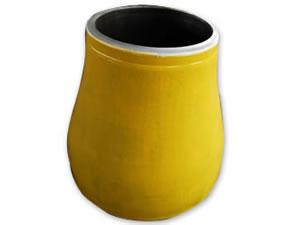

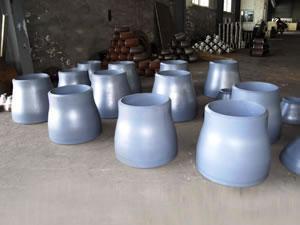

  • Concentric Reducer
  • Concentric Reducer

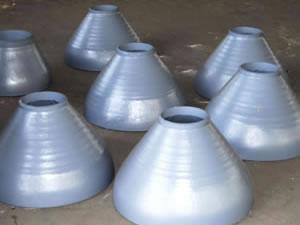

Pipe Reducer

A pipe reducer is a kind of industrial pipe fittings used to connect two pipes (or tubes) of different diameters. It contains concentric reducer and eccentric reducer. The former is used on vertical pipes, and the latter is used for horizontal pipes.

Pipe reducers are mainly used in the following areas:
1. Pipe reducer is useful when there is a requirement on change of fluid flow rate.
2. It is used for pump inlet to prevent cavitation.
3. It is fit for the connectors of instruments, such as flowmeter and control valve.

Specifications for Pipe Reducer
  Production range
Seamless pipe reducer Welding pipe reducer
Outside diameter 1/2"-32" DN15-DN800 6"-120" DN150-DN3000
Wall thickness 4mm~200mm
Product type Concentric reducer, eccentric reducer

Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. thickness: 200mm

Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Standards
ASME B16.9-2012, ASME B16.25-2012, ASME B36.10M-2004, ASME B36.19M-2004
MSS SP-75-2008, MSS SP-43-2013
EN 10253-1-1999, EN 10253-2-2007, EN 10253-3-2008, EN 10253-4-2008
DIN 2616-1-1991, DIN 2616-2-1991
CSA Z245.11-13-2013
BS 1640-1-1962, BS 1640-2-1962, BS 1640-3-1968, BS 1640-4-1968, BS 1965-1-1963
GOST 17378-2001
AFNOR NF A 49-289-1990, AFNOR NF A 49-170-1-1999, AFNOR NF A 49-170-2-2009, AFNOR NF A 49-170-3-2009, AFNOR NF A 49-170-4-2009
ISO 3419-1981, ISO 5251-1981
GB/T 12459-2005, GB/T 13401-2005, GB/T 10752-2005
SH/T 3408-2012
SY/T 0609-2006, SY/T 0518-2002, SY/T 0510-2010
DL/T 695-2014, GD 2000, GD 87-1101

Industrial Processes
Squeezing, pressing, forging, machining and more

Industries Served
Our pipe reducers have found many applications in a wide range of industries, such as electricity, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and so on.

Ahad is a China pipe reducer manufacturer and supplier. We can provide pipe reducers made of different materials, such as carbon steel reducer, stainless steel reducer, alloy steel reducer, high yield steel reducer (Line pipe reducer), low-temperature steel reducer, and so forth. Additionally, we offer other pipe fittings for customers to choose from, including pipe elbow, pipe bend, pipe tee, and pipe cross. Our products have passed ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification. So this product is quite safe for use.
